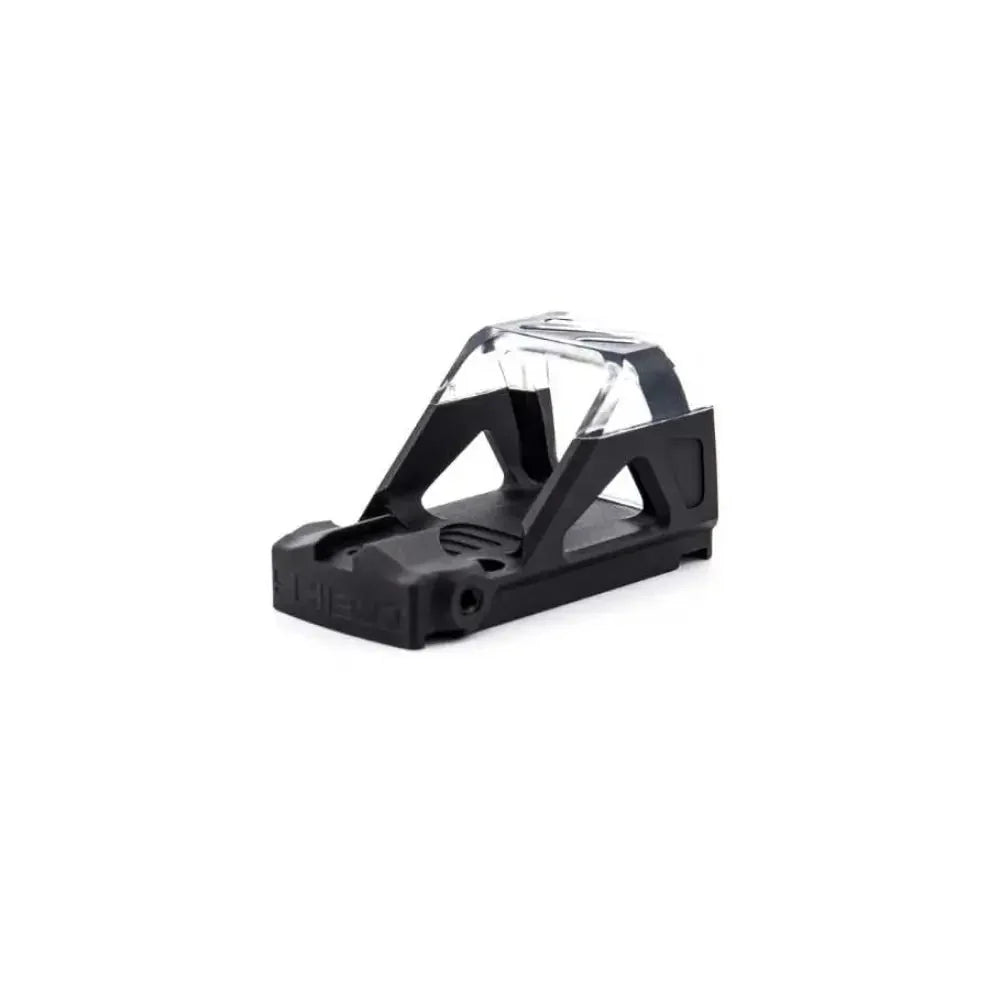

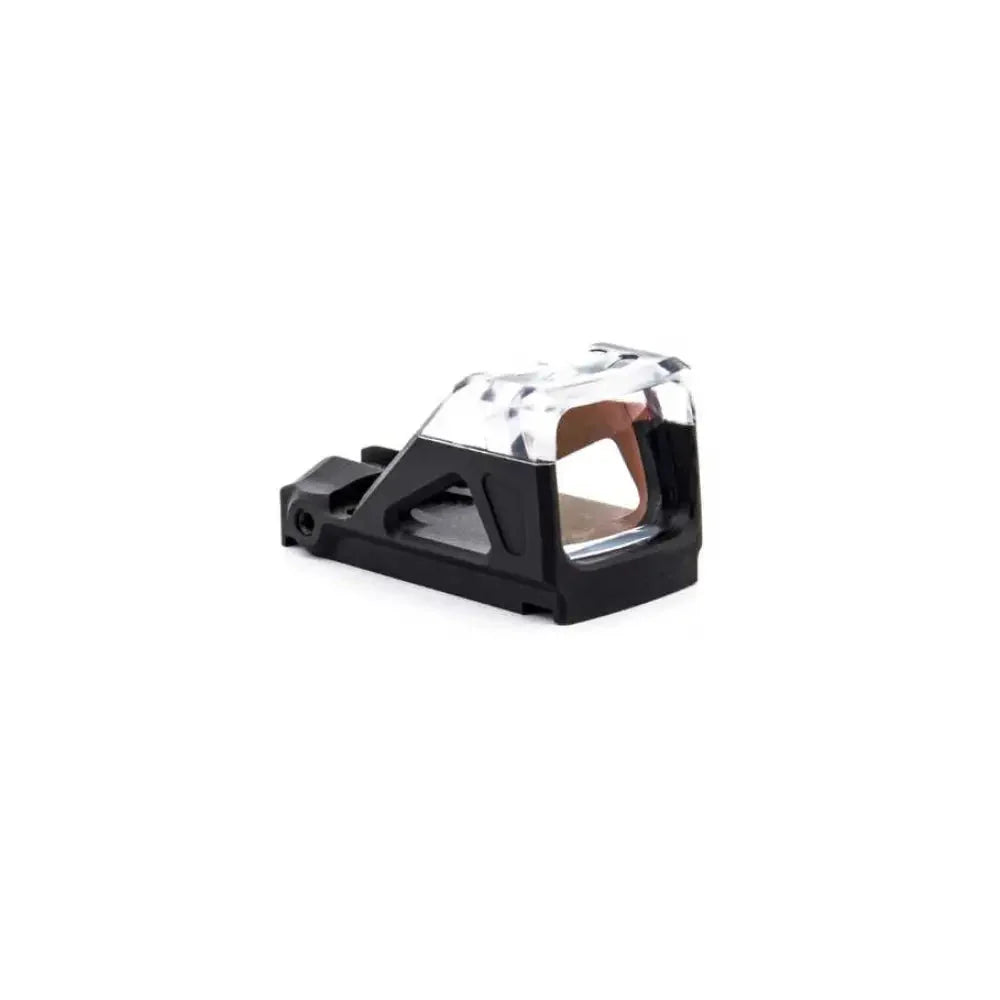

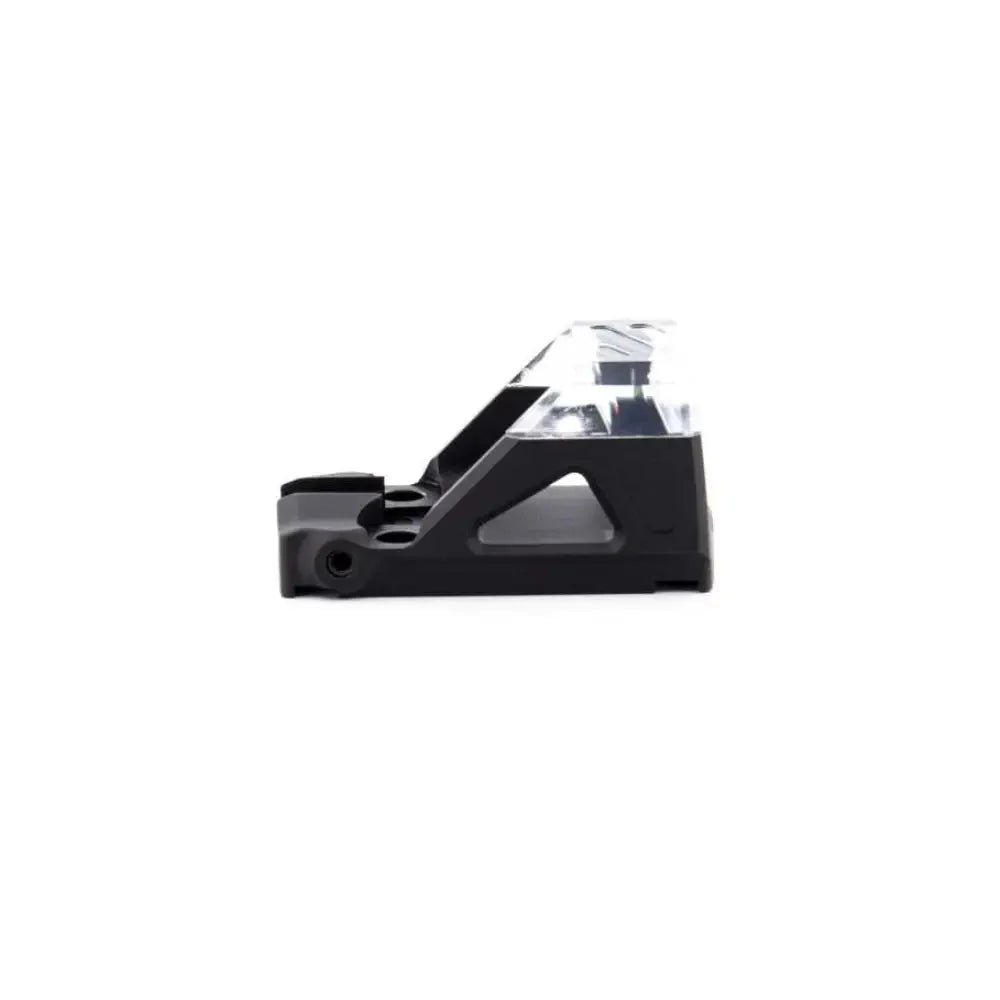

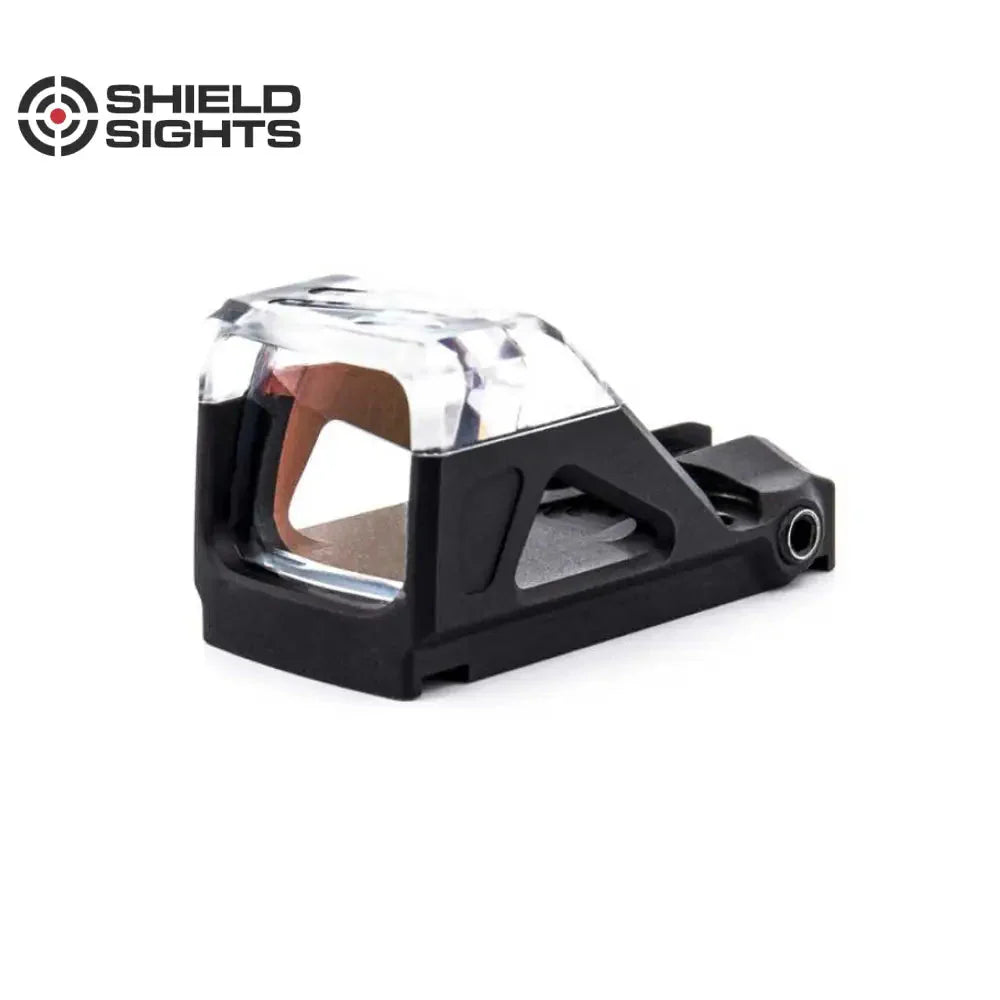

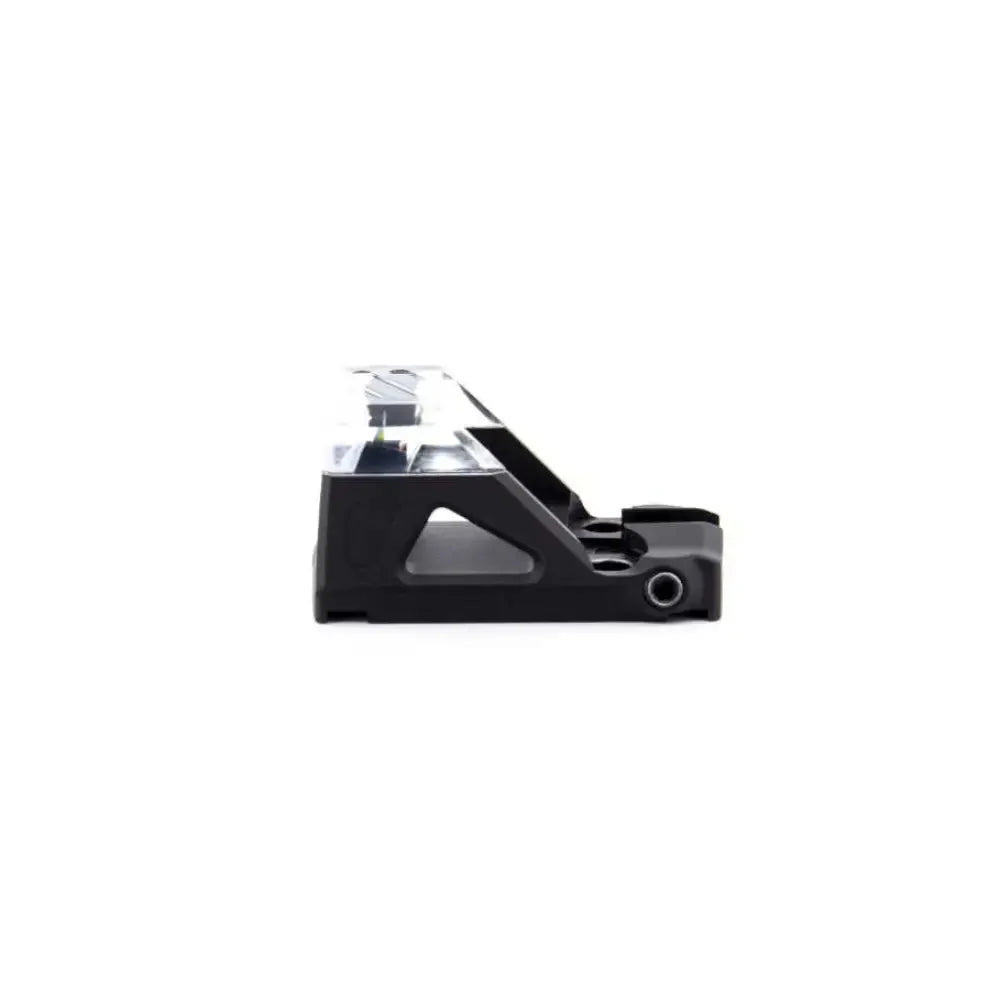

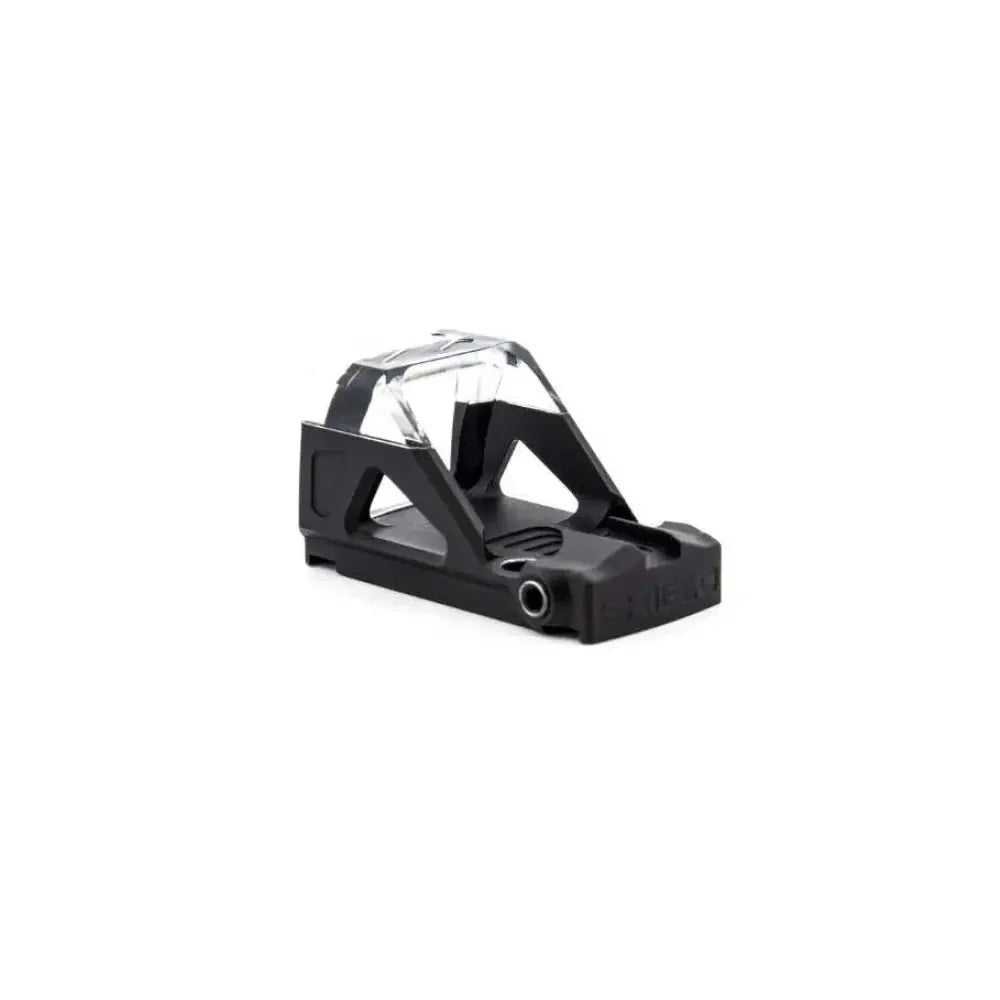

Shield OMSsc [Glass]

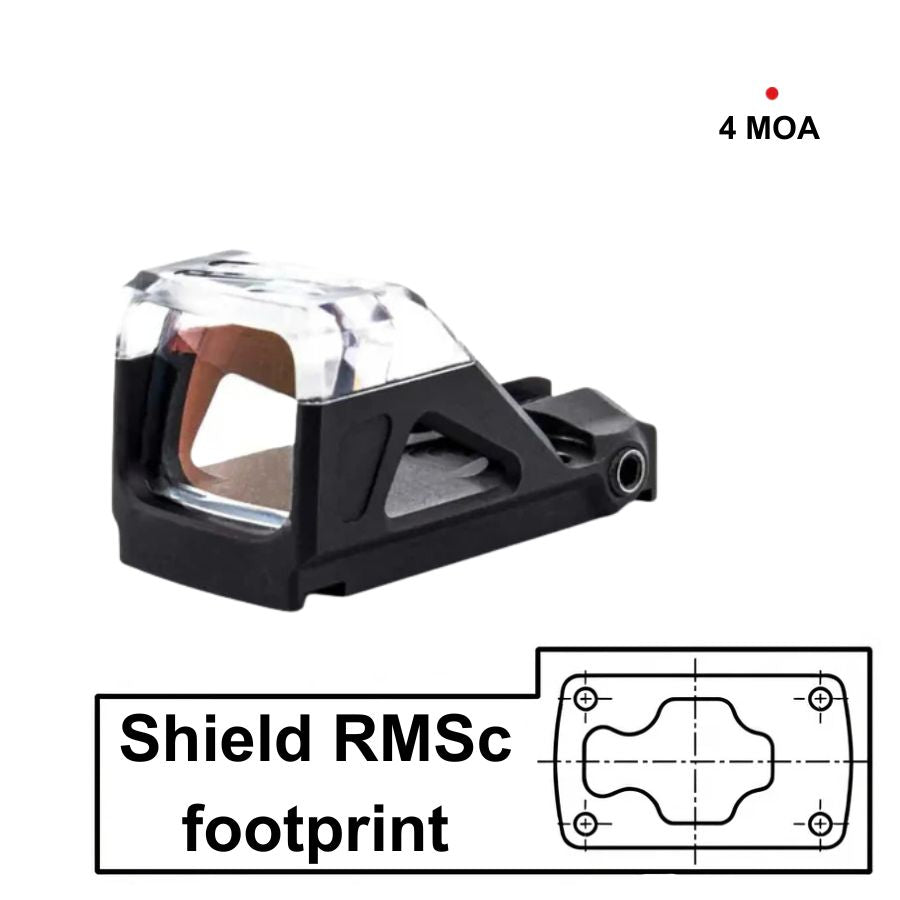

This red dot uses the Shield RMSc footprint standard.

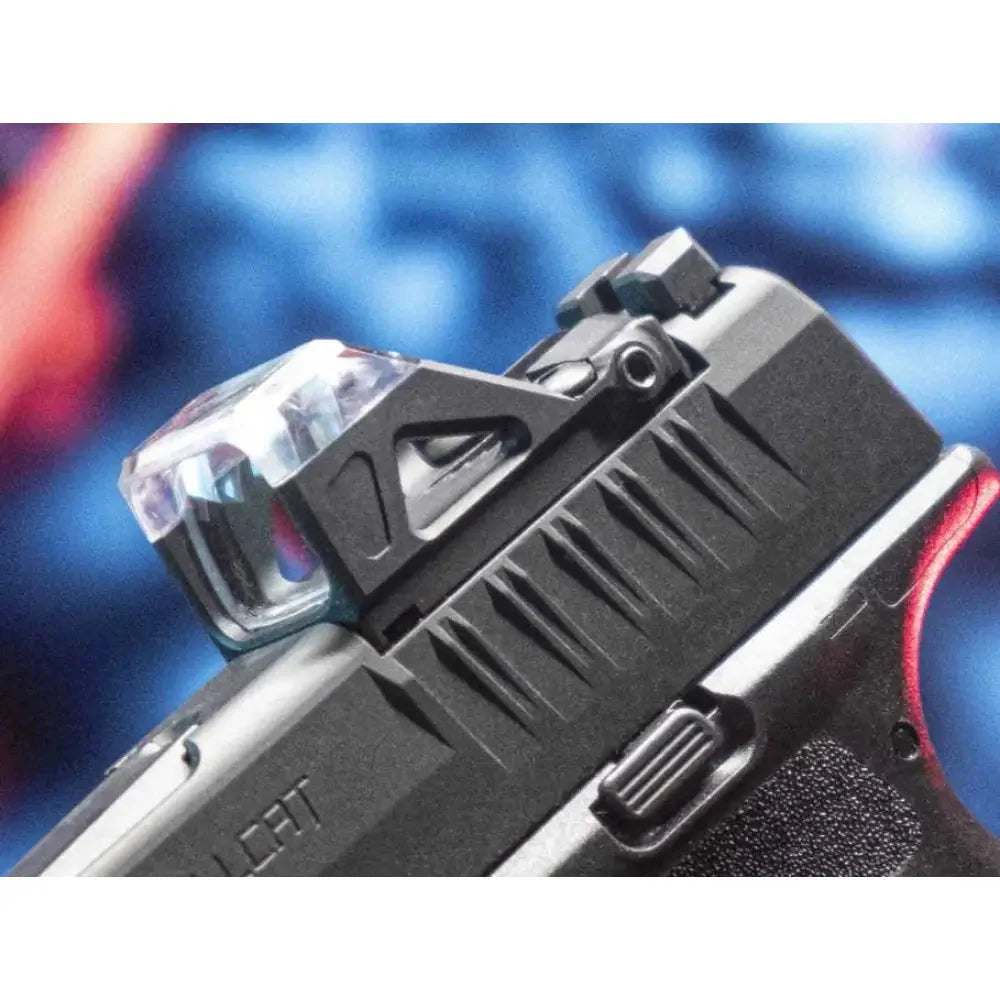

We are proud to announce the second release in our line of Micro Compact red dots designed for concealed carry and small form factor handguns.

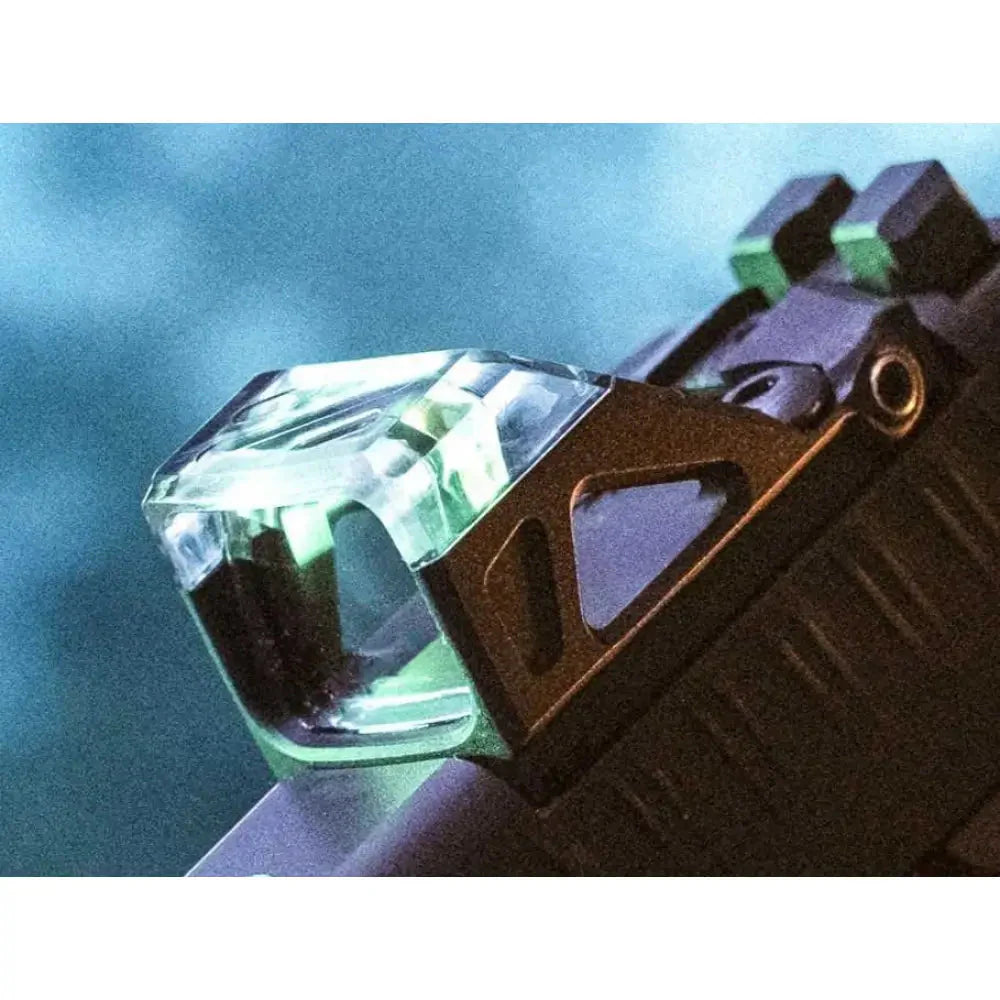

The OMSsc takes on all the latest product design and functionality of our RMSsc and combines it with a World First Translucent roof to offer a whole new concept in Micro Red dot design.

The patented design features include:

• World First Panoramic roof for an unparalleled field of view and increased  sampling to measure ambient light conditions
• Aerospace grade anodized T6 6082 Aluminium offering excellent corrosion resistance and the highest strength of the 6000 series alloys
• All new crystal clear glass lens with no magnification or coloured coatings
• Micro compact body design
• Available in 4 MOA
• CR1632 3V Lithium 1.5  year average use
• Night Vision compatible
• IP67 Rating

Technical Specification

Optical Characteristics

• Light Source: Red light emitting diode (LED) No laser; completely eye safe. No radioactive materials.
• Red Dot Size Options: 4MOA, 8MOA.
• Lens:Reflex x1 (no magnification) Parallax-free, crystal clear glass lens.
• Lens Coating: Anti reflective colour free coating minimizes visible signature.
• Lens Shape Lens shape square (W x H) 17.35mm x 14.35mm / 0.68” x 0.56“.

Electronics

• Battery: CR1632 3V lithium metal battery.
• Battery Fitting: Underside location.
• Battery Life: 9000 hours in average daylight with a CR1632.
• Brightness Adjustment: Automatic.
• Brightness Range: Lowest – compatible with night vision. Highest – visible against the sky in bright daylight.

Exterior

• Housing material: Anodized aerospace grade aluminium (6082 T6), with hard impact acrylic roof.
• Colour: Matte black, translucent arcylic roof.
• Dimensions: Sight (L x W x H) 40.8mm x 19mm x 21.5mm / 1.60” x 0.74“ x 0.84”).
• Weight: 14.7 grams / 0.51 ounces without battery.
• Mount: The SHIELD Footprint – 100+ Mounting solutions.
• Water immersion: IP67.
