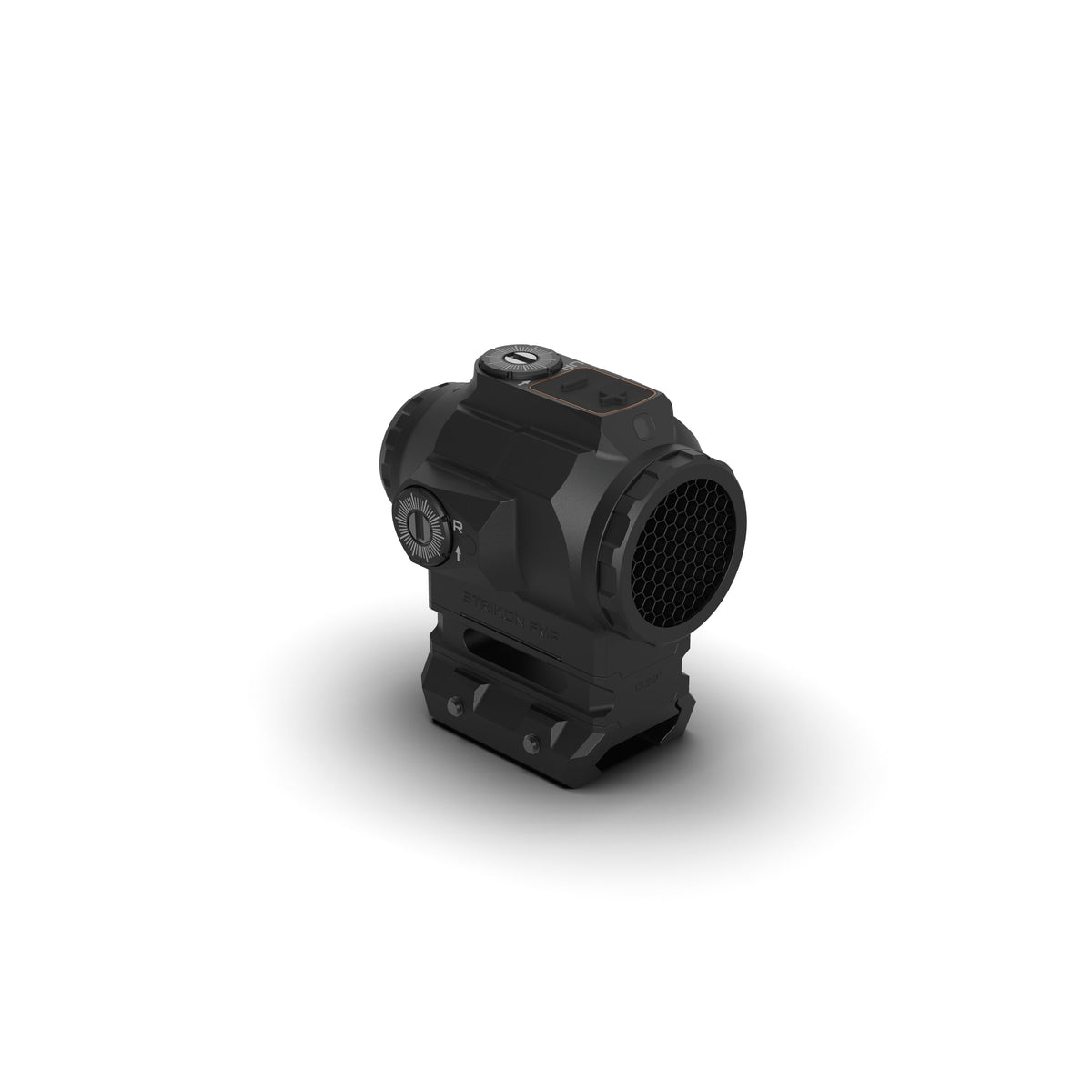

Sightmark Strikon FMP 1x18 Prismatic Sight red dot

This red dot mounts on any gun equipped with a Picatinny or Weaver rail.

The Sightmark Strikon FMP 1x18 is a true 1x prismatic sight built around an internal glass prism and an etched RTR-1 reticle, rather than the LED-only reticle of a standard red dot.

Because the reticle is etched into the glass, the sight stays usable even with a dead or removed battery. It delivers a crisp, parallax-free sight picture through fully multi-coated lenses rated at 85% light transmission.

It uses the Aimpoint Micro mounting interface and ships with four riser and screw sets (1.15", 1.54", 1.93" and 2.32" mounting heights), so it can be fitted at several co-witness heights directly on a Picatinny or Weaver rail.

Illumination comes from a 12-level red/green LED system (9 daytime and 3 night vision compatible settings) with automatic brightness adjustment and a 10-minute Shake Awake auto-shutoff to save the CR2032 battery.

The housing is machined from 6061 aluminium, IP67 waterproof, nitrogen-filled and fogproof, and shock-tested to 1000G per MIL-STD-810H.

Key advantages

• True 1x magnification with parallax-free, edge-to-edge optical clarity
• Works even without battery power thanks to the etched reticle
• Picatinny/Weaver mount, adjustable to four co-witness heights with the included risers
• 10-minute Shake Awake auto-shutoff and automatic brightness adjustment
• IP67 waterproof, nitrogen-filled fogproof, 1000G shock-tested construction
• Flush, snag-free adjustment turrets

In the box

• Sightmark Strikon FMP 1x18 Prismatic Sight
• Three 0.39" riser kits
• Honeycomb filter
• Rubber lens cover
• CR2032 battery
• T15 Torx key
• Turret adjustment tool
• Four screw sets (1.15", 1.54", 1.93", 2.32" mounting heights)
• Lens cloth

Specification

• Magnification: 1x
• Objective lens diameter: 18 mm
• Reticle: RTR-1 (Rapid Targeting Reticle), etched
• Illumination: LED, red/green, 12 brightness levels (9 day, 3 NV)
• Focal plane: 2nd
• Eye relief: 97.9 mm (3.85")
• Field of view (100 yds): 86.5 ft
• Parallax setting: 50 yards
• Diopter adjustment: +2 to -2
• Adjustment per click: 1 MOA
• Windage/elevation range: 120 MOA
• Battery type: CR2032
• Battery life: high 100 h, mid 1,000 h, low 10,000 h
• Housing material: 6061 aluminium
• Finish: matte black
• Mount: Picatinny/Weaver (Aimpoint Micro interface, adjustable-height riser)
• Operating temperature: -30 °C to 60 °C
• Water resistance: IP67
• Shock rating: 1000G (MIL-STD-810H drop test)
• Dimensions (with 1.54" mount): 61.4 x 44.0 x 71.3 mm
• Weight (with 1.54" mount): 194.8 g
